Can we fix it..... Yes we can. (PSP Repair Guide)

Whilst playing Star Wars - Force Unleashed on my PSP over the weekend, I noticed something strange happening with the console. Even though I was not touching the joystick, Darth Vader continued to walk - like some strange 'force' had control of my PSP. I decided to try Monkey Island 2 (using the Scumm emulator), and noticed that the mouse pointer had a mind of its own and moved to the bottom right hand side of the screen without me doing anything. I decided to pop on to eBay and fortunatly found a replacement joystick module for an amazing £5.00 (including P&P)

I have decided to do a small guide so that if any of you have the same problem as me, you can fix it yourselves without forking out £40 - £100 getting it repaired.

Be warned though that it does involve opening up the PSP, so if yours is still under warranty, I'd advise not doing this.

Firstly, the most important thing to do is find somewhere nice to work - somewhere that is'nt cluttered. Oh, and make yourself a cup of tea too.

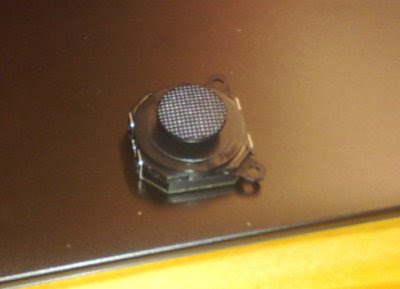

Next, get your replacement joystick module handy, and a very small cross head (Phillips) screwdriver. You may need a small flat head screwdriver, depending on whether you have good finger nails or not.

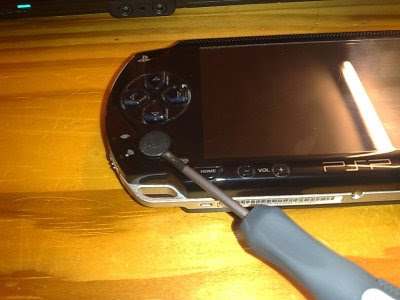

Pull off the joystick cap. If you have long nails, you could probably use your fingers. If not, use a small screwdriver. Just pry it off. Trust me, it comes off.

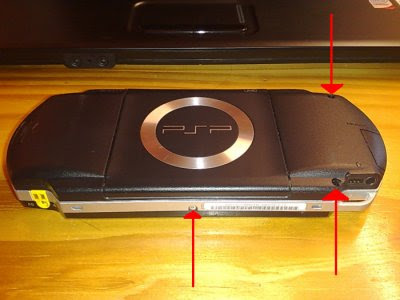

Turn the PSP over (screen down) and locate the following three screws. Unscrew them with the cross head (Phillips) screwdriver.

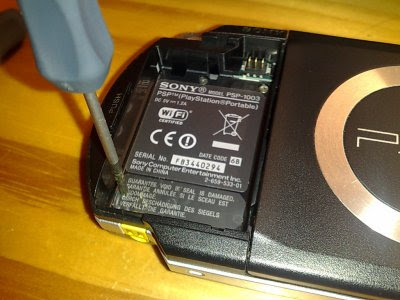

Remove the battery compartment cover and the battery and unscrew the screw as shown in this picture.

The next screw that you need to remove is located under the 'guarantee void' sticker. It is impossible to remove this screw without damaging the sticker, so unless your PSP is still under guarantee, unscrew the screw! You will probably not be able to see the screw, but trust me, it is there (well it is with my PSP1000 model). Either unscrew it through the sticker, or remove the sticker completely.

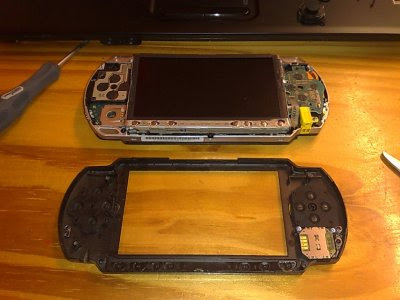

You can now remove the cover to the PSP. Try not to get your fingerprints over the screen.

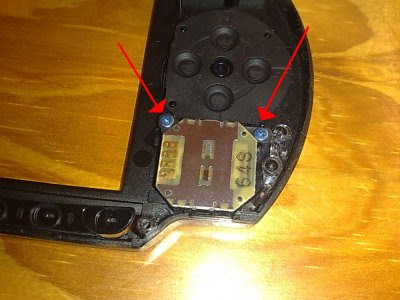

Locate the faulty joystick module, and unscrew the two screws completely.

Replace the joystick module with the new one, and screw it back in to place. Re-assemble the PSP (making sure that the screws are tight) and....

Voila!!! One perfectly working PSP, with a joystick that no longer moves on its own!!!
